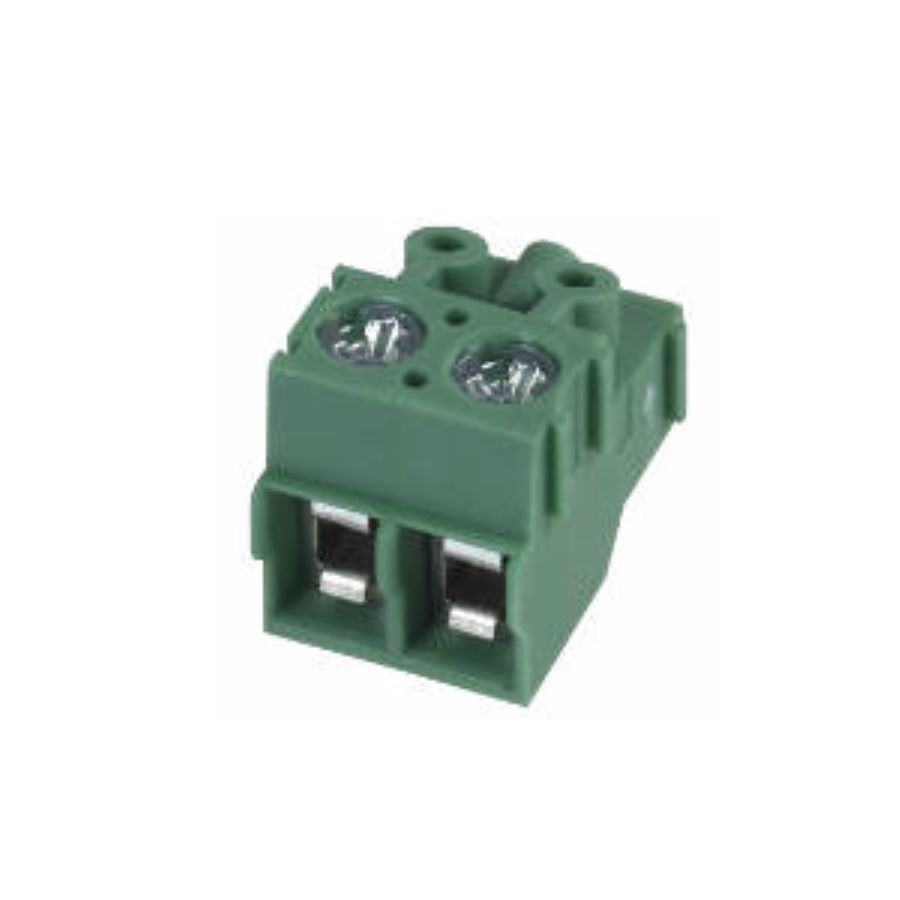

1934861
Manufacturer:
Phoenix Contact
Mfr.Part #:
1934861
Datasheet:
Description:
Terminal Blocks Through Hole 2 5 mm 15 A 300 V 26 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Termination | Screw - Rising Cage Clamp |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | 0 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 250 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 5 mm |
| Current Rating | 15 A |
| Flammability Rating | UL 94 V-0 |
| Color | Green |
| Number of Contacts | 2 |
| Mounting Style | Through Hole, Solder |
| lead free status | Lead Free |
| rohs status | Compliant |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Nylon |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| size width | 15.0 mm |
| size length | 14.9 mm |
| size height | 11.4 mm |
| voltage rating ac | 250 V |
| Housing Color | Green |
| pin pitch | 5.00 mm |
| Wire Gauge | 12 AWG |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 14 AWG |
Stock: 154
Distributors
pcbx
pcbxUnit Price$0.60058
Ext.Price$0.60058
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60058 | $0.60058 |
| 10 | $0.48998 | $4.89980 |
| 25 | $0.45424 | $11.35600 |
| 50 | $0.42111 | $21.05550 |
| 100 | $0.39039 | $39.03900 |
| 300 | $0.36191 | $108.57300 |
| 500 | $0.33552 | $167.76000 |
| 1000 | $0.31758 | $317.58000 |
